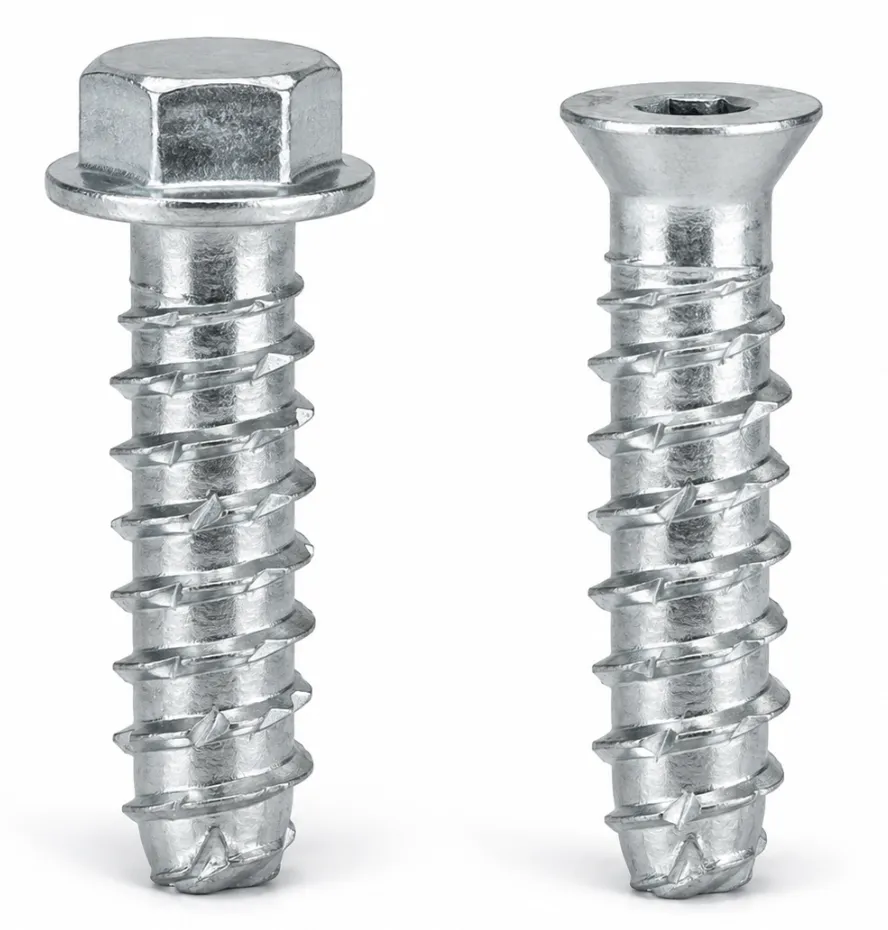

Concrete screws cut their own thread directly into a pre-drilled hole in concrete, with no expansion force on the substrate. That makes them usable at close edge distances and in thin sections where an expansion anchor would crack the concrete, and they can be removed and reinstalled.
Supplied in bulk to distributors, importers and hardware brands worldwide, including private-label packaging in the customer's own branding. Non-standard sizes and made-to-drawing variants are produced to order, with a material test certificate on every consignment.
| Product Type | Screw anchor (concrete screw) — self-tapping hardened thread, no expansion |
| Standards | Canco standard design; pull-out testing to ASTM E488 on request |
| Material Grades | Case-hardened carbon steel; SS 410; bi-metal stainless on request |
| Size Range (Metric) | 6 mm to 14 mm (equal to drill diameter) |
| Size Range (Imperial) | 3/16" to 3/4" |
| Length Range | 30 mm to 200 mm (1-1/4" to 6") |
| Head / Drive Type | Hex washer head, countersunk Torx / Phillips, pan head, internally threaded rod-hanger head |
| Finish | Zinc plated, mechanically galvanized, blue organic coating, zinc flake |
| Custom Options | Lengths, head types, M8 / M10 / M12 rod-hanger heads, private label |
| Certification | Material Test Certificate, EN 10204 3.1 |
| Packaging | Boxed in standard counts, bulk cartons, or private label to customer specification |
